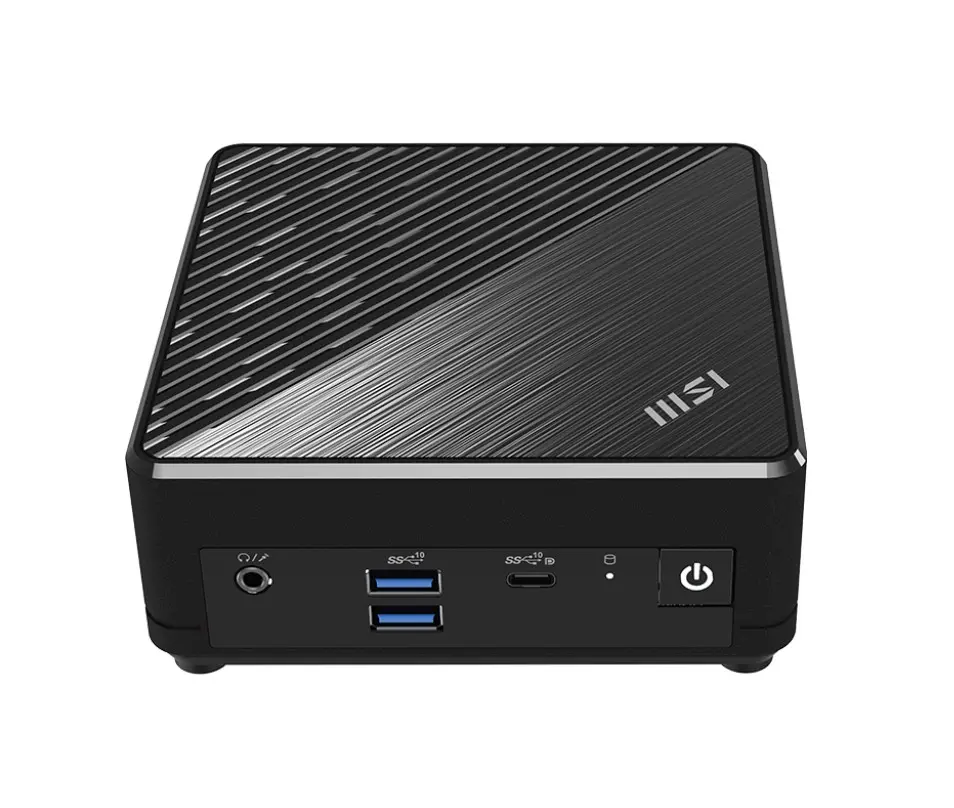

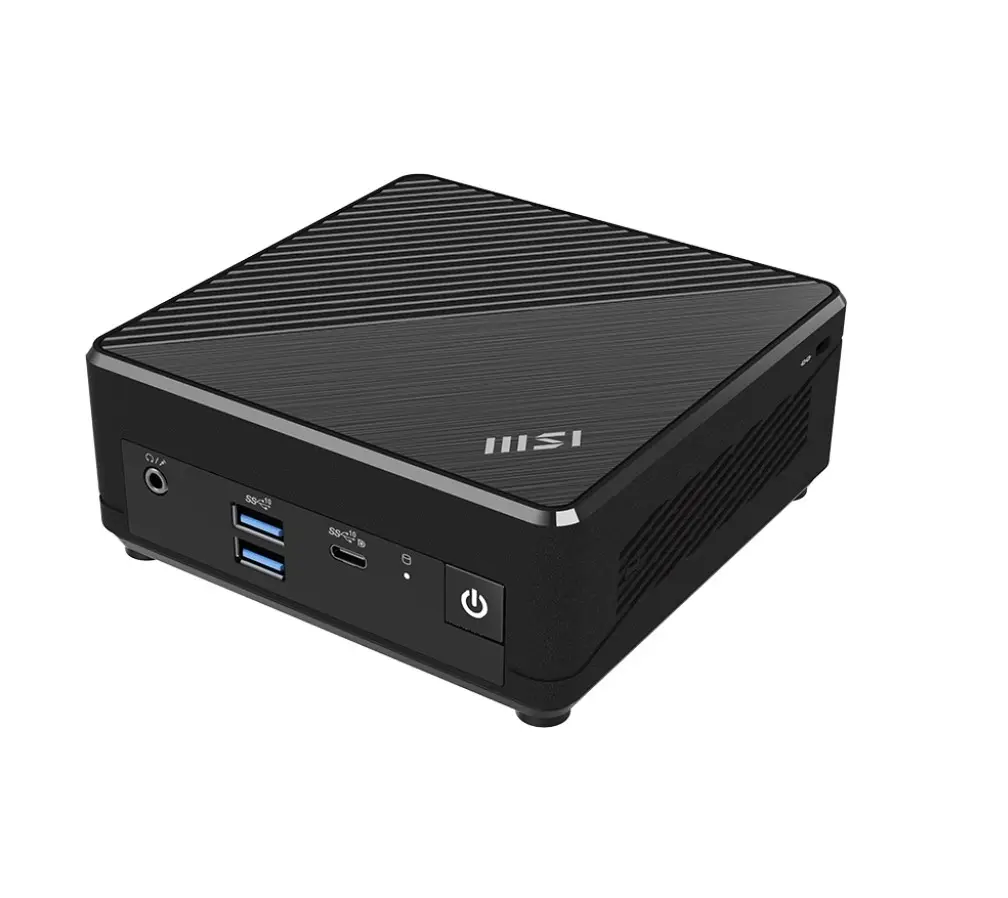

MSI Cubi N ADL S Intel N100 Barebone Mini PC (CUBI N ADL S-214BAU)

DESCRIPTION

MSI Cubi N ADL S-214BAU Mini PC barebone Intel N100,DDR4 upto 16GB, Intel HD Graphics, 1x M.2, 2x USB 3.2,

SPECIFICATIONS:

OPERATING SYSTEM win11 home/ win 11 pro

CPU Intel® Processor N100 (6M Cache, 0.8 GHz up to 3.4 GHz)

CHIPSET Intel® SoC

GRAPHICS Intel HD Graphics (NA)

I/O Ports 2x RJ45

Cooler Fanless

STORAGE 1x M.2 SSD combo (NVMe PCIe Gen3 x2 / SATA)

MEMORY DDR4 3200 MHz Max 16GB SO-DIMM 1 Slots

Audio Realtek ALC256 2.1 Channel HD Audio

Communication 2x Realtek RTL8111H Intel Wireless AC 3168 + Bluetooth v4.2

Intel Wireless AC 9462 + Bluetooth v5

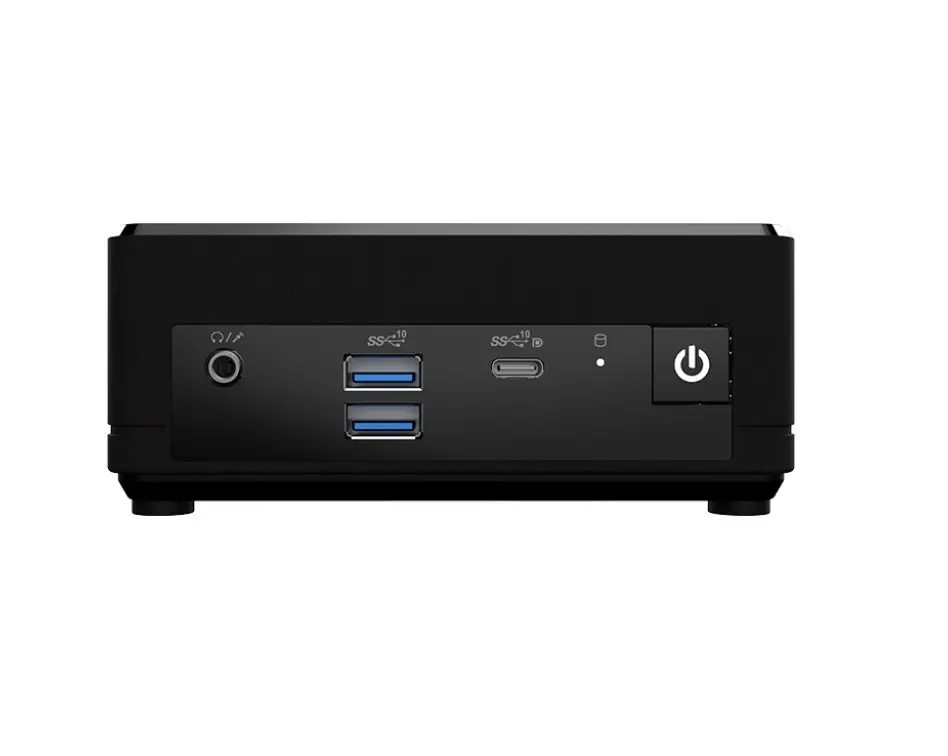

I/O (FRONT) 1x Mic-in/Headphone-out combo

1x USB 3.2 Gen 2 (10G) Type C

2x USB 3.2 Gen 2 (10G) Type A

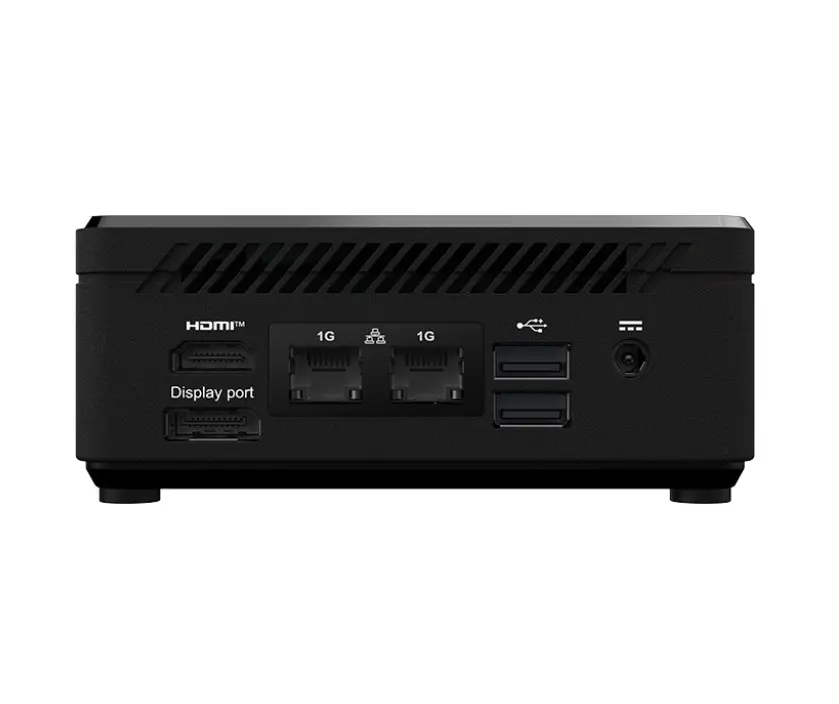

I/O (REAR) 2x USB 2.0 Type A (R)

1x (v2.1) HDMI out

1x (v1.4) DP out

Kensington Lock Lock type

Power Supply 65W

VESA 100 x 100 mm

Product Dimension (WxDxH) 124 x 124 x 53.7 (mm)

Size 0.7L Liter

Weight 0.54 (Net kg)

1.39 (Gross kg)

Noise Level 28 db Idle mode

38 db Full loading mode

LAN 1x Realtek® RTL8111H

1x Realtek® RTL8125BG-CG

COOLING SYSTEM Fan Cooler

AC ADAPTER / PSU 65W

MANAGEMENT UTILITY MSI Center:

SECURITY UTILITY & DEVICE MSI Center: System Diagnosis

DIMENSION (WXDXH) 124 x 124 x 53.7 mm

WEIGHT (N.W./ G.W.) 0.55 kg / 1.4 kg

VESA MOUNT 100 x 100 mm / 75 x 75 mm

ACCESSORIES 1x User Manual (Optional)

1x Quick Guide

1x Warranty Card

1x Adaptor

1x Power Cord

VESA Mount Screw
